Model 8060-R RED LED GRILL & SURFACE MOUNT EXPANSION PACK

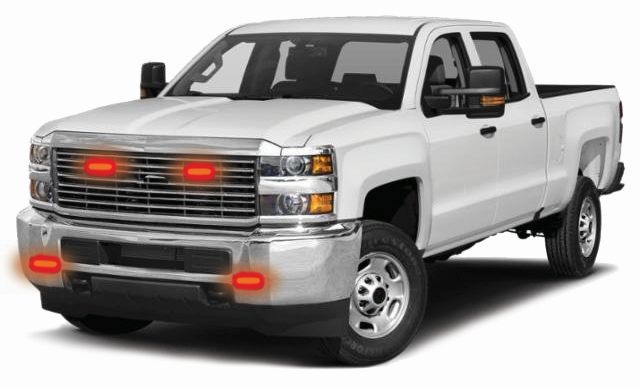

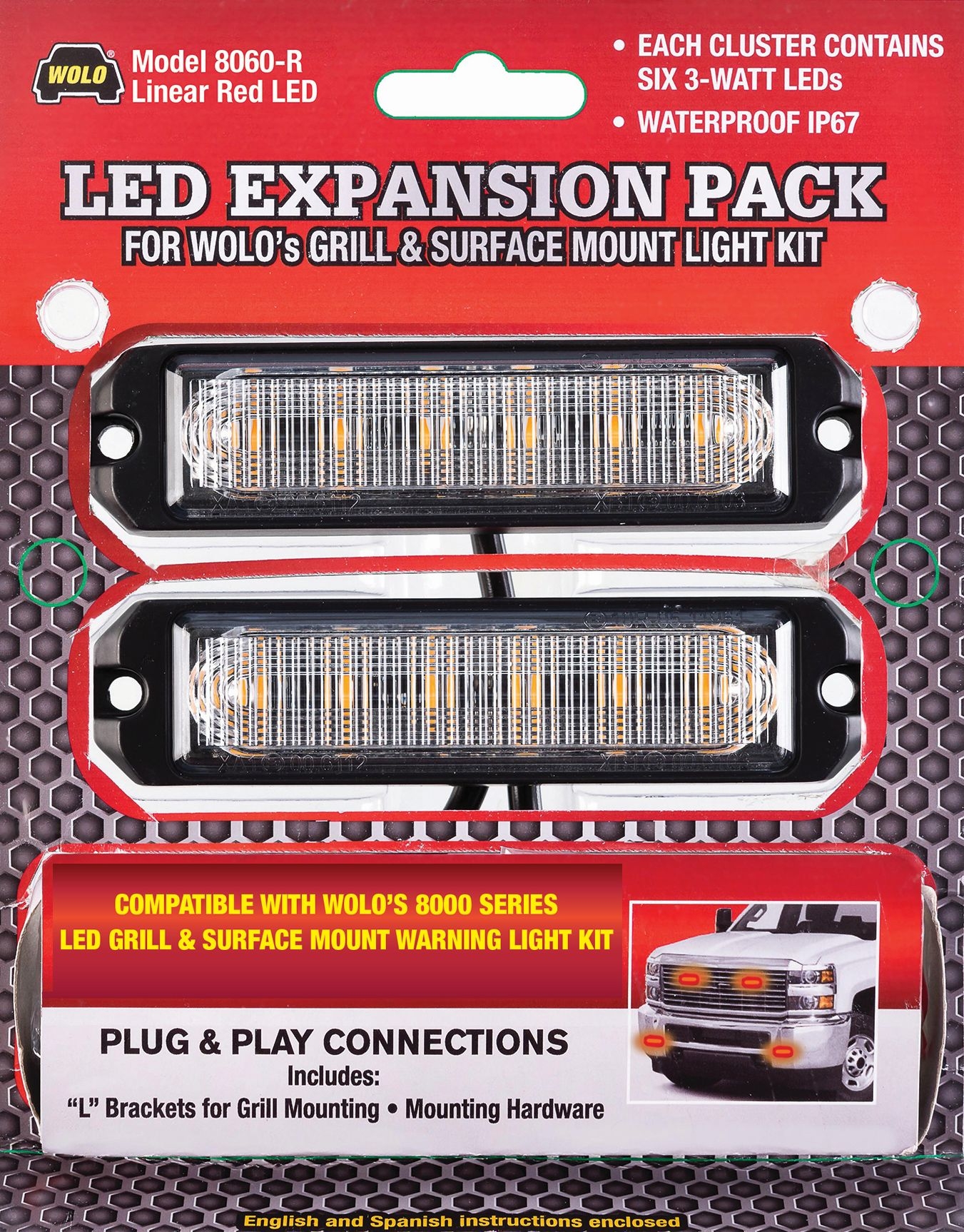

The expansion pack is two red linear LED clusters that are factory wired with waterproof plugs designed for simple plug and play installation to Wolo’s 8000 series LED GRILL AND SURFACE MOUNT WARNING LIGHTS. Kit is used to increase the 8000 series from two (2) LED clusters to four (4) synchronized LED clusters.

Meets or exceeds SAE J595 Class 1

$59.99

Out of stock

Additional information

Weight 1 lbs
Dimensions 13 × 11 × 5 in

Installation Details

Model 8060-R  Expansion Kit English PDF

Model 8060-R Expansion Kit Spanish PDF

Specifications

SPECIFICATIONS:

  • Mounting brackets: 2-Alumimun painted black
  • LED type: 3535 SMD
  • LED qty per cluster: 6
  • LED wattage: 3-watts Red
  • Cluster wattage: 18-watts
  • LED clusters are synchronized
  • LED lens: Clear
  • Linear Lens: PMMA
  • Operating voltage range: 12-24V
  • Current draw: 0.9-Amps @ 12-volts 0.6-Amps @ 24-volts
  • Patterns: 26
  • Cluster Housing: Aluminum
  • IP rating: IP67
  • LED rated life in hours: 50,000 hrs.
