Model 839-860 Cannon Ball Express Pro PlusĀ® Lanyard Valve 152 Decibels 307/347/440 Hz

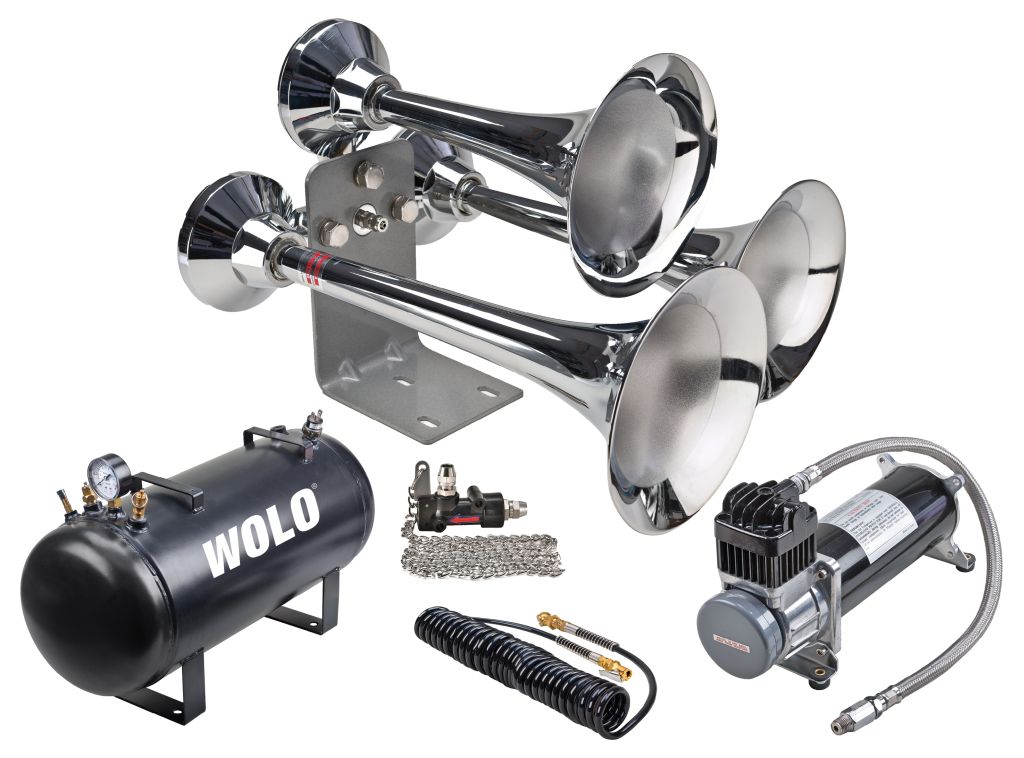

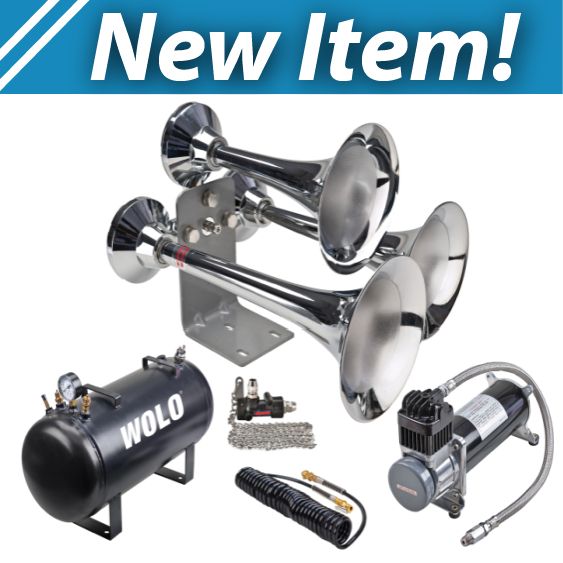

When a truck owner demands an ultra powerful horn, the CANNON BALL EXPRESS PRO PLUS TRAIN HORN is the one to choose. Gives any truck a true train horn sound. Constructed of all metal with three (3) triple chrome plated trumpets and operated by a heavy-duty lanyard valve, included. The horn’s base is painted steel. The Cannon Ball Express PRO PLUS TRAIN HORN requires an on-board air system. Horn comes with all required mounting hardware, 10 foot length of 1/4″ nylon high pressure hose and a heavy-duty lanyard valve.

The on-board air system provided is designed to produce a large volume of high-pressure air to power the CANNON BALL EXPRESS PRO PLUS TRAIN HORN and includes everything necessary for a professional installation. The extra heavy-duty 12-volt motor of the compressor is balanced to precision, and there are 4 heavy rubber bushings mounted into the base virtually eliminating all vibration. The pump produces 3.5 CFM for quick air recovery to the storage tank. For easy installation there is an extended length stainless steel high-pressure hose that allows the compressor to be surface mounted, the stainless steel hose connects the compressor to the 5-gallon metal air storage tank. Other features of the CANNON BALL EXPRESS PRO PLUS are; the tank has a built-in pressure switch, manual water drain, pressure gauge, pressure relief valve and brass fittings. Kit comes with mounting hardware, 10 ft. of flexible high-pressure hose and 20 ft. coiled filler hose with quality brass fittings.

$489.99

Out of stock

Additional information

Weight 17 lbs
Dimensions 19 × 16 × 14 in

Specifications

HORN
152 Decibels
307/347/440 Hz – Low Range
Horn size: L 16-1/2 in. x W 14-3/4 in. x H 11 in.
Horn output with 90/110 psi: 152 db
Horn construction: All metal, base - painted enamel, trumpets - chrome plated
Lanyard valve
Hose type: 1/4 in. O.D.
Air fittings: Brass
Mounting hardware: Stainless steel


COMPRESSOR
Voltage: 12-volts
Current: 22-amps at peak
CFM: 3.5
Pump has washable air filter
Oil-less maintenance free
Permanent magnet motor that is gearless with
thermo protection
Compressor size: L 11-1/2 in. x W 3-1/2 in. x H 6-1/2 in.



TANK
Tank capacity: 5 gallon
Built in pressure switch: On 80 /off 110 psi
Safety pressure relief valve
Pressure gauge
Fitting size: All brass
Petcock water drain
Tank size: L 20-1/2 in. x W 8-1/2 in. x H 10-1/2 in.
Size compressor mount on tank: L 20-1/2 in. x W 8-1/2 in. x H 17-1/2 in.
