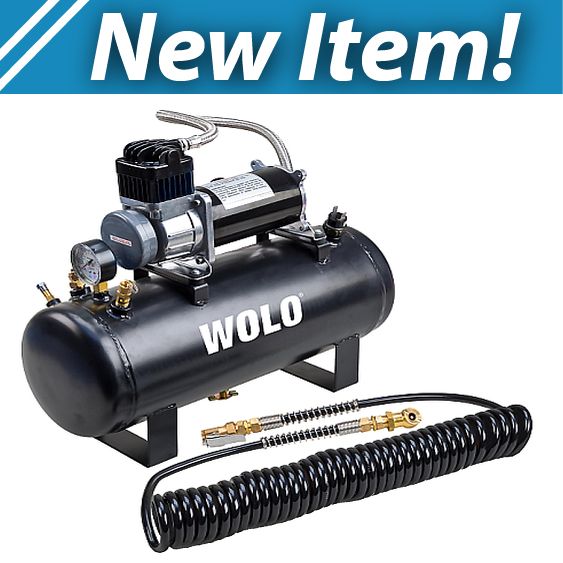

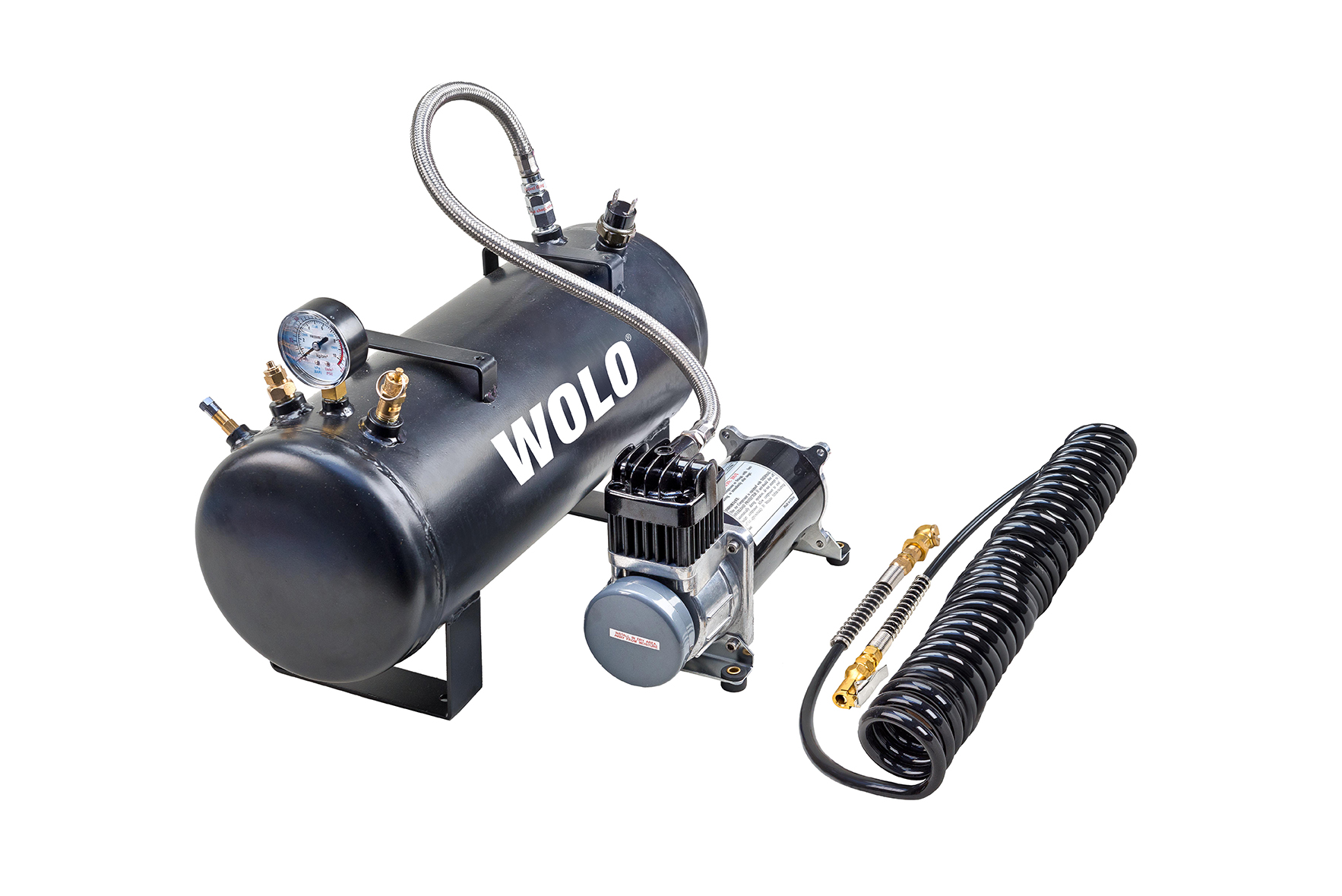

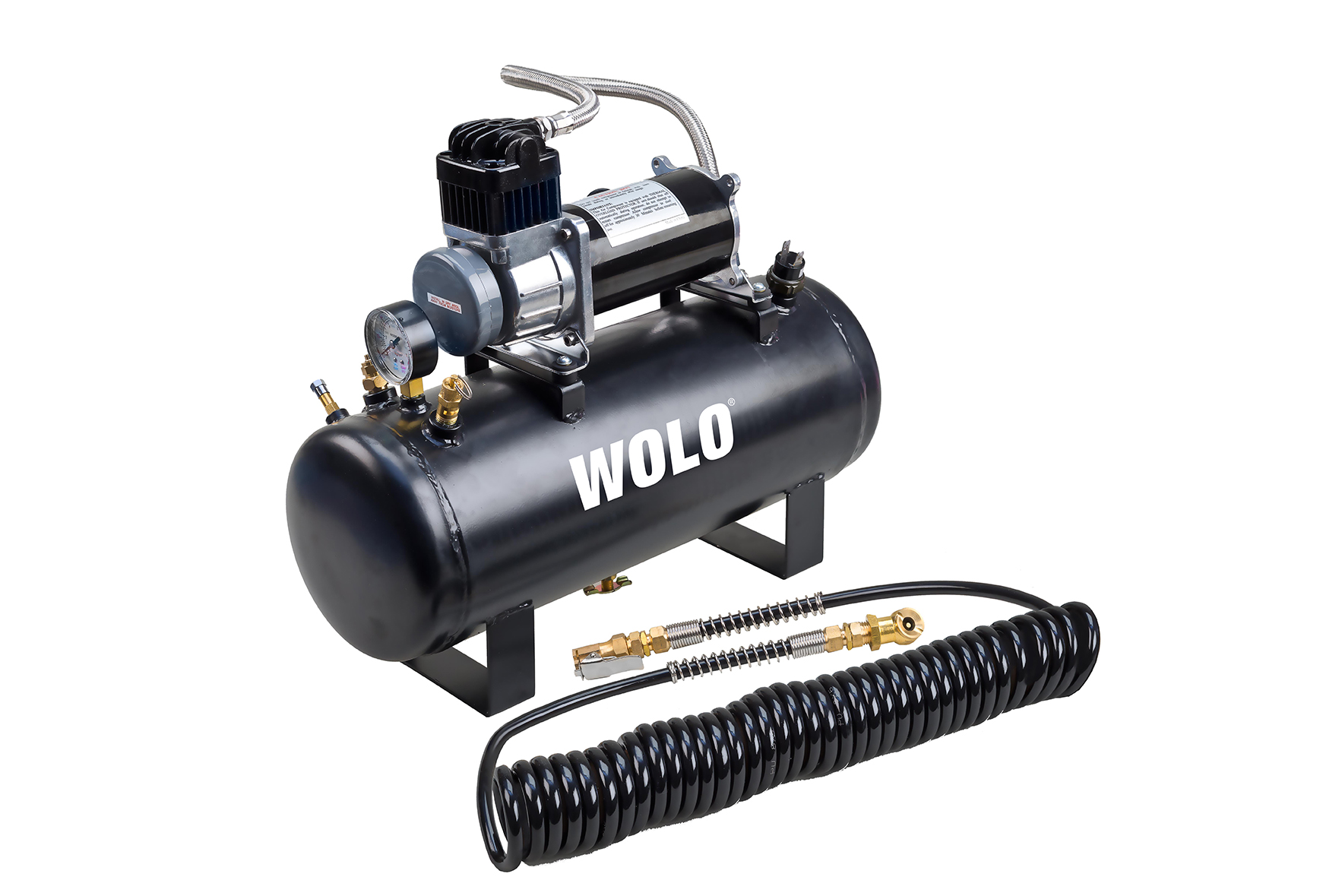

Model 858 Tornado® Heavy-Duty Compressor & 2.5-Gallon Tank
The Model 858, TORNADO is ideal for applications that require large volumes of high-pressure air. Model 858 is ideal for powering train air horns, air-locking differential, or to power light-duty pneumatic tools. Use the coiled filler hose with brass fittings provided, to fill shocks, rafts and sporting equipment. The heavy-duty compressor is equipped with extended length stainless steel high-pressure hose, allowing the compressor to be separated from the tank for surface mounting. TORNADO is a complete on-board air system that includes everything necessary for a professional installation. The 2.5-gallon steel tank is painted black to prevent rust and corrosion and has steel mounting brackets that are welded to the tank. Other tank features are; built-in pressure switch, manual water drain, pressure gauge, pressure relief valve and brass fittings. The pump’s cylinder and head have been designed with cooling fins that allows the compressor to have a 33% @ 100 psi duty cycle. The heavy-duty 12-volt motor of the compressor is balanced to precision and there is heavy rubber bushing mounted into the base virtually eliminating all vibration. TORNADO will provide a reliable, cost-effective solution to your onboard air system needs. Kit comes complete with all mounting hardware, 10 ft. of flexible high-pressure hose, 20 ft. coiled filler hose with brass fittings and installation instructions in English / Spanish.

$264.99
Out of stock
Additional information
| Weight | 19 lbs |
|---|---|
| Dimensions | 19 × 16 × 10 in |
Installation Details
Specifications
COMPRESSOR SPECIFICATIONS
- 12-Volt heavy-duty compressor
- Current: 21 amps at peak
- CFM: 2.55
- In-line fuse holder with 25 amp fuse provided
- Permanent magnetic motor that is gearless with thermo protection
- Oil-less maintenance free design
- High performance piston ring
- Moisture & dust resistant
- Painted aluminum alloy cylinder
- Mounting base has rubber vibration bushings
- Stainless steel braided hose with in-line check valve
- Washable air filter
- Size: L 10-1/4 in. x W 3-1/2 in. x H 6-1/2 in.
TANK
- 2.5-Gallon
- Welded steel mounting brackets
- Petcock water drain
- Pressure switch 80 psi. auto-on / 120 psi. off
- Safety pressure relief valve rated at 150 psi.
- Pressure gauge
- Fitting all brass
- Size: L 17-1/4 in. x W 6-1/2 in. x H 15-1/4 in. Compressor mount on top of tank
- Size: L 17-1/4 in. x W 6-1/2 in. x H 8-1/4 in. Tank only.
